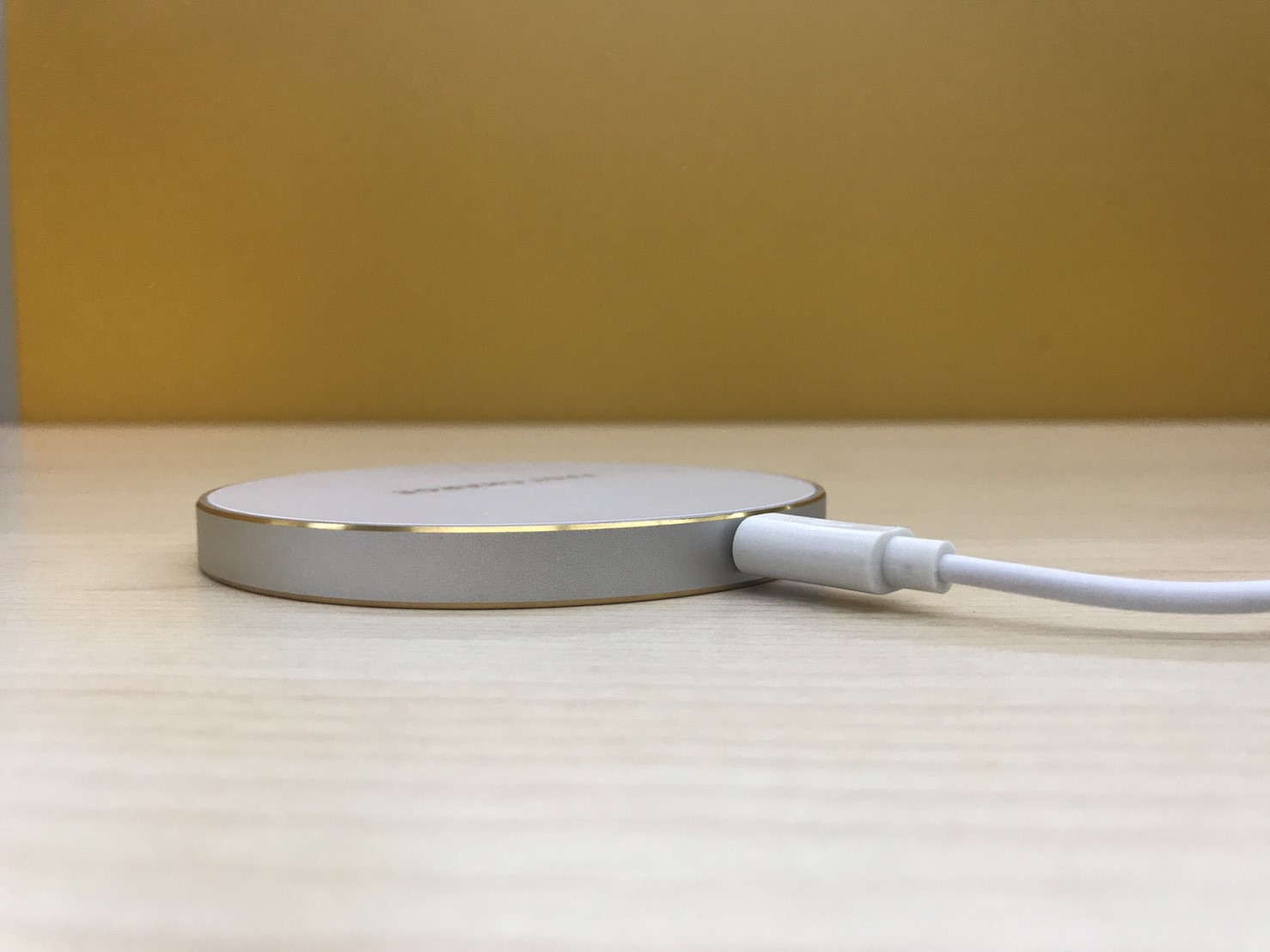

iWCQ-01

Specification:
In-put voltage: DC 5.0- 9.0V
In-put current: 5V/2A, 9V/1.67A
Out-put voltage: DC 5.0- 9.0V
Out-put current: 1- 1.5A (With Qi standard receptors)

Charging power: Up to 15W
Transfer rate: More than 80%. (Currently, general wireless charging products are less than 80%)

Induced distance: Maximum 5 mm, within 4 mm recommended.
Digital standby power consumption: The average power consumption is less than 30mW.

Temperature protection: Stop charging for 1 min automatically when the temperature is over 53°C, and re-charge again while the temperature decreases.
Over-current protection: To prevent damage to the charger, it will stop charging automatically when the output current is over 2A.

Complies with the Qi Wireless Charging Standard WPC 1.2 specification.
Support foreign object detection. (FOD)
Indicated LED: Bright blue light when charging ; Bright green light when full charg. (Indicator colors are changeable)
Working frequency: 100KHZ~ 205KHZ
